Ground electrode

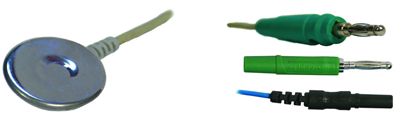

Ground electrode, which is made of stainless steel, offers an alternative to the grounding stripes. More important is the positioning, the correct placement and a good transition resistance. Our custom molded grounds offers long lasting performance. The round stainless steel ground has a flat contact surface and a diameter of 30 mm. A Velcro stripe will be used to keep the ground in place. To achieve the necessary transition resistance with the least possible contact problem, the electrode can also be used as a conventional grounding electrode with contact gel. The main lead will be connected firmly with the plates and will not vary by the length.
| No. | Part No. | Name | connector | Item per package |
|---|---|---|---|---|
| 1 | 01M-07G-01 | Ground electrode | With 4mm plug | 1 |
| 2 | 01M-07G-02 | Ground electrode | With 2mm plug | 1 |
| 3 | 01M-07G-03 | Ground electrode | With 1.5mm TP-plug | 1 |
