Project Description

EMG/NCV/EP 5000Q

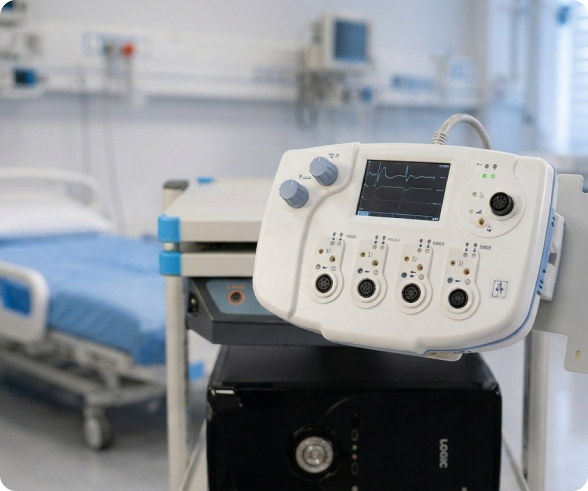

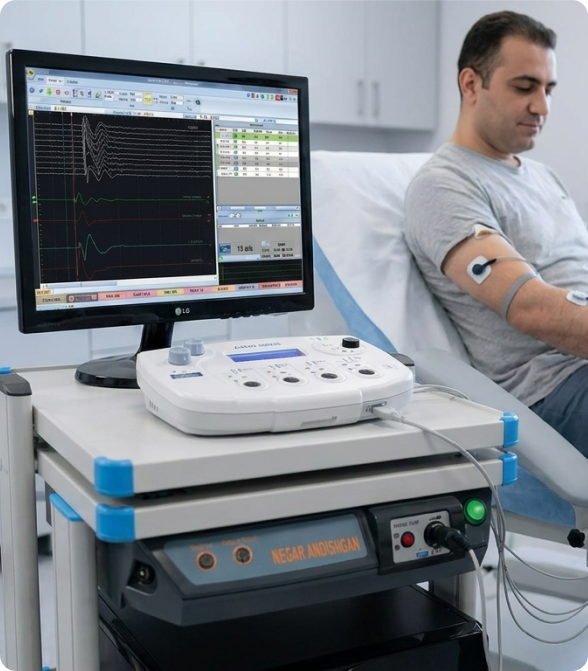

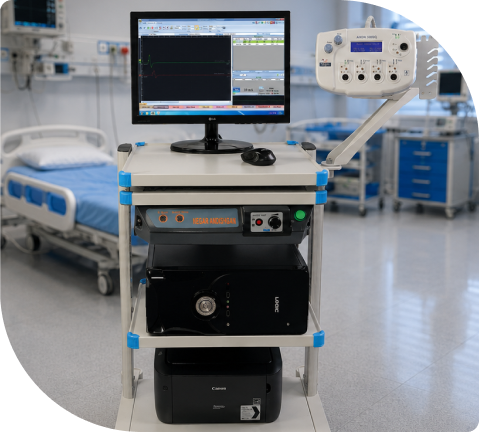

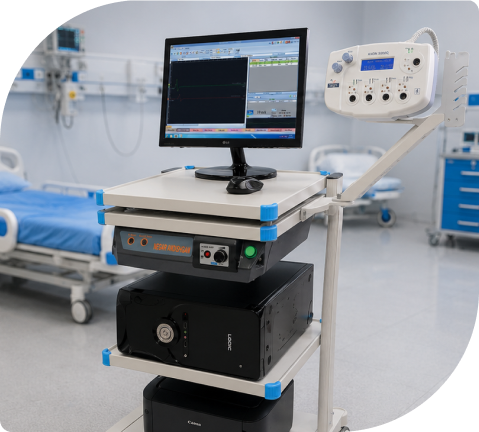

NR Sign Manufacturing 5000Q/NCV/EP is a full featured diagnostic EMG system with a low noise high performance amplifier and state of the art software features. This system can be configured for 2 or 4 channels.

  • F Wave
  • H reflex
  • Blink Reflex
  • RNS (Repetitive Nerve Stimulation)
  • Motor NCV
  • Sensory NCV
  • Needle EMG
  • Visual Evoked Potential
  • Auditory Evoked Potential
  • Somatosensory Evoked Potential
  • CE, ISO 13485, CMDCAS, FDA QRS certified

Protocol wizard:

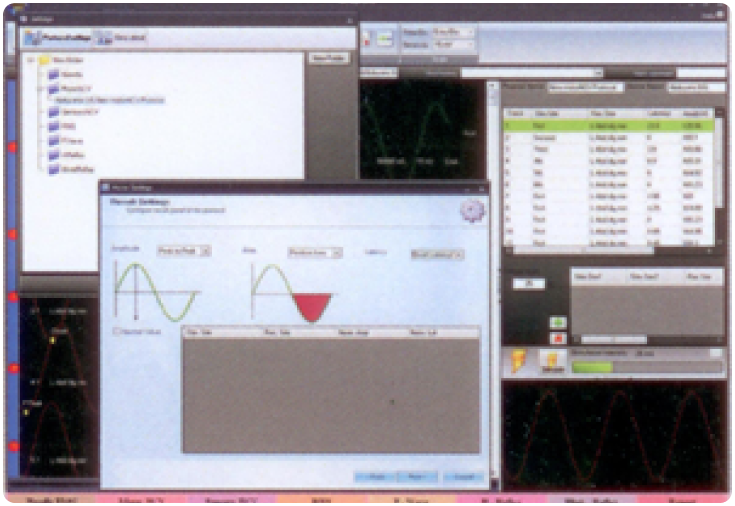

  • This EMG System is a powerful tool for defining the new tests, designing and customizing your system in your own way

  • Name of nerves, muscles, number of signal traces, method of calculation, shape of result table, final report and many other options can be defined by protocol wizard

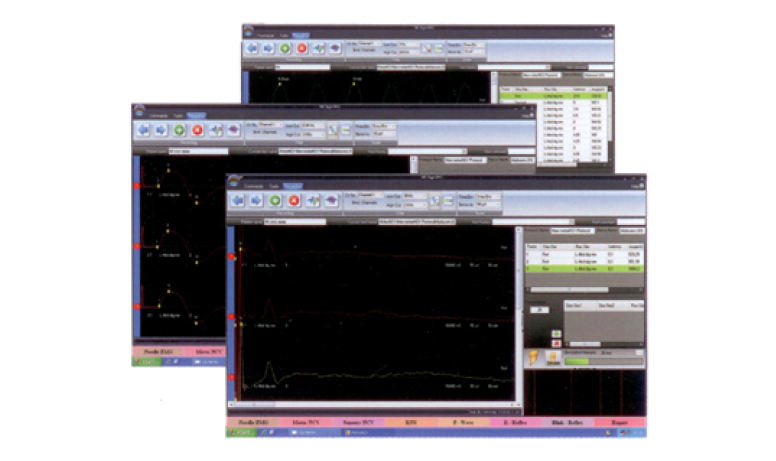

  • Microsoft word report generator can help you to generate your report in less than a minute
  • Graphical directory for muscle and nerve electrode placement can give you useful recommendations
  • There are many kind of applicable functions such as:
    • Left and Right comparison
    • Super imposer

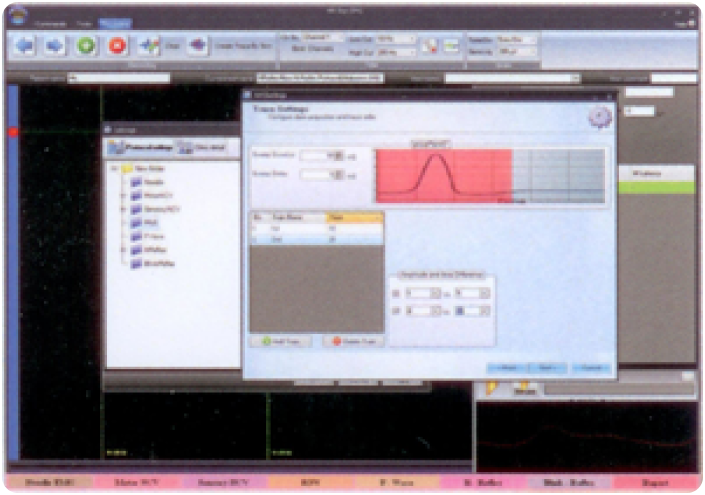

    • Peak detector
    • Needle Video and Audio reviewer
    • Signal annotation to help you get more precise results

  • MYSQL Server guarantees the integrity of data management which can be accessed through the network.

PRODUCT CATALOGUE

PRODUCT CATEGORIES

EEG PRODUCTSVIEW
EEG ACCESSORIESVIEW
EMG PRODUCTSVIEW
EMG ACCESSORIESVIEW

  RELATED PRODUCTS

  OPENING HOURS

Monday – Friday8:00 – 17:00
Saturday9:30 – 17:00
Sunday9:30 – 15:00

  +1 (778) 822 4402

TECHNICAL SPECIFICATION

      • Accuracy: Time measurement error: less than 5%; Amplitude measurement error: less than 5%
      • 2, 4 Channel EMG and EMG/EP Systems
      • Input Impedance: >1000M OHM, < 30pF; CMRR >100dB; Noise < 5μV r.m.s
      • Low Cut ( -6dB/octave) 0.1, 1, 3, 10,, 30,100, 200, 300, 400, 500, 1000, 2000Hz
      • High Cut (-12dB/Octave) 40, 50, 60, 80, 100, 200, 300,400, 500Hz
        1, 2, 3, 10, 20KHz
      • Notch Filter 50Hz/60Hz Selectable
      • A-D Conversion 12 Bit ADC
      • Sweep Duration 1ms to 1s per channel
      • Average Double buffer averaging with choice of display modes
      • Display Customer option; Display Sensitivity 0.2μV to 30mV/div

Power Requirements: Input 100-220 volts 50Hz/60HZ

    Approx. 500VA max (dependant on configuration)
